ALL193EEDB

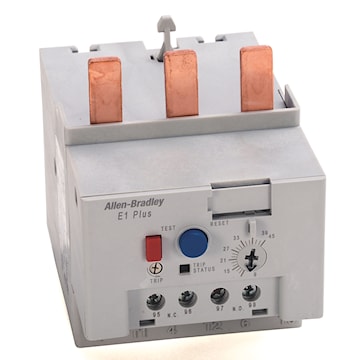

ALLEN BRADLEY 193-EEDB E1 Plus IEC Overload Relay IEC Overload Relay 1 NO, 1 NC 3.2 - 16 A,
Description
Solid-state overload relay, Three-phase device, Selectable Trip Class (10, 15, 20, or 30), Selectable manual/auto-manual reset, Screw-type control terminals, Contactor mount, Electronic design, Thermal memory, Rugged construction, A separate phase loss detection circuit incorporated into the relay allows it to respond quickly to phase loss conditions, typical reaction time is 3 seconds.
Specifications
| Brand Name | Allen Bradley | Sub Brand | E1 Plus |
| Item Name | IEC Overload Relay | Type | IEC Overload Relay |
| Voltage Rating | 600 - 690 VAC at 50/60 Hz | Contact Configuration | 1 NO, 1 NC |
| Amperage Rating | 3.2 - 16 A | Terminal Type | Screw |
| Mounting | Direct | Standards | C-TICK, CCC, CE, CSA, KC, MARINE |
| Application | Mounts to 100-C09 to 100-C23 Contactors | UPC | 781180129476 |
Packages
| 1 - Unit | 9 - Unit | 40 - Unit |
