INTGMXSTI120

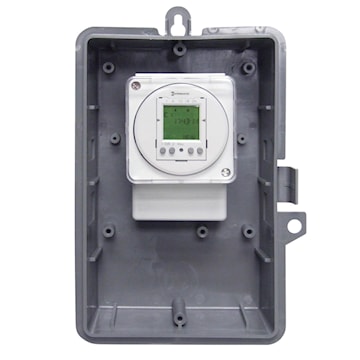

INTERMATIC GMXST-I-120 Grasslin Timer Electromechanical Time Control 15 - 1440 min SPDT - 1 NO, 1 NC
Description
GMX Series Time switch is universal, electromechanical time controls. It is a low cost alternative for applications that do not require more than 21 Amp or 2 HP @ 240 VAC. The unit is mounted in a UL Type 1 or UL Type 3R outdoor enclosure. GMX is a light-duty commercial time switch ideal for 24, 120, 208 or 240 VAC single phase applications, such as lighting control, heating, air-conditioning, pumps, motors, fans, agricultural facilities and general electrical circuits. 21 amp SPDT switch. UL Type 1 indoor or Type 3R outdoor enclosure. Manual 3-way override. Captive trippers with 15-minutes intervals on 24-Hour models and 2-hour intervals on 7-Day models. True clock face, easy to set. Finger-safe terminals. Enclosure provides space for field added contactor or other accessories. Synchronous drive or quartz drive with battery backup.
Specifications
| Brand Name | Grasslin | Sub Brand | Grasslin |
| Item Name | Timer | Type | Electromechanical Time Control |
| Supply Voltage | 120 VAC | Timing Range | 15 - 1440 min |
| Contact Configuration | SPDT - 1 NO, 1 NC | Contact Rating | 21 A at 250 VAC (Resistive) |
| Dimensions | 6-1/2 in W x 3-3/4 in D x 10 in H | Amperage Rating | 21 A |
| Frequency Rating | 60 Hz | Power Source | 1 hp at 120 VAC, 2 hp at 240 VAC |
| Power Consumption | 1350 W | Number of Poles | 1 |
| Terminal Connection | Screw | Enclosure Type | NEMA 1 |
| Material | Plastic | NEMA Rating | NEMA 1 |
| Mounting | Wall, Conduit | Temperature Rating | -40 to 185 °F |
| Environmental Conditions | Indoor | Standards | cULus Listed E10694, cCSAus Certified |
| Application | For Commercial, Indoor, Lighting, HVACR, Pumps, Motors, Fans, Agricultural, General Electrical Circuit | UPC | 078275153226 |
Packages
| 1 - Unit | 6 - Box | 144 - Pallet |
