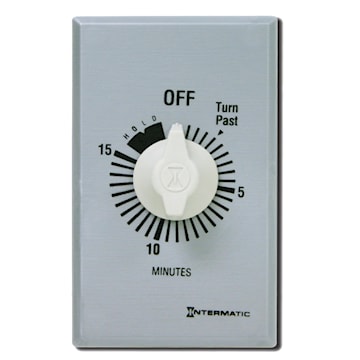

INTERMATIC FF15MH Analog Timer with Hold Commercial, Spring Wound, Auto-Off 0 - 15 min (1) SPST - 1 NO
intff15mh70
INTERMATIC FF15MH Analog Timer with Hold Commercial, Spring Wound, Auto-Off 0 - 15 min (1) SPST - 1 NO
Price
$97.52
/ EA
Inventory
Available for backorder
Manufacturer:INTERMATIC
Manufacturer #:FF15MH
Description
COMMERCIAL; ALUMINUM PLATE, WHITE KNOB; TIME CYCLE 15 MIN; OPERATION TYPE WITH HOLD; SPST SWITCH; CONTACT CURRENT 20 AMPERE AT 125 VAC 50/60 HZ, 10 AMPERE AT 250/277 VAC 50/60 HZ, 7 AMPERE AT 125 VAC (TUNGSTEN); CONTACT POWER 1 HP AT 125 VAC 50/60 HZ, 2 HP AT 250 VAC 50/60 HZ; OPERATING TEMPERATURE -40 TO 120 DEG F; WALL MOUNTING; SIZE 1-1/4 INCH D; APPLICATION AIR CONDITIONING, APPLIANCE, EXHAUST FAN, FAN, HEATER, LIGHTING, MOTOR, PROCESS CONTROL, VENTILATING FAN, WHIRLPOOL; APPROVAL UL 917, CSA C22.2; INTERMATIC[R] BRAND; FF MODEL; ENERGY SAVING
Specifications
| Brand Name | Intermatic | Item Name | Analog Timer with Hold |
| Type | Commercial, Spring Wound, Auto-Off | Supply Voltage | 125 - 277 VAC |
| Timing Range | 0 - 15 min | Contact Configuration | (1) SPST - 1 NO |
| Contact Rating | 7 A at 125 VAC (Tungsten), 20 A at 125 VAC (Resistive), 10 A at 250/277 VAC (Resistive) | Dimensions | 2.79 in H X 1.6 in W X 1.19 in D |
| Amperage Rating | 15 A | Frequency Rating | 50/60 Hz |
| Power Source | 1 hp at 120 VAC, 2 hp at 240 VAC | Number of Poles | 1 |
| Terminal Connection | Teeter Type | Mounting | Wall |
| Standards | cCSAus Certified, UL Listed, UL Recognized, HVACR, NEC | Application | Indoor, CFLs Lighting, Fans, Electric Motors, Heaters, HVACR |
| UPC | 078275184138 |
Packages
| 1 - Unit | CH - Unit | 6 - Box | 1200 - Pallet |
