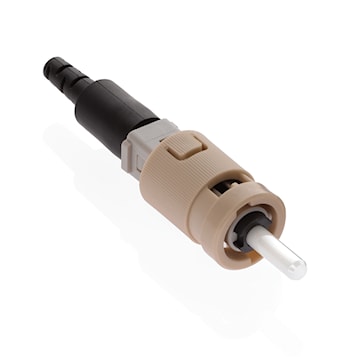

LEVITON 49991-MST FastCam® Pre-Polished Fiber Optic Connector ST OM1 Multimode
Due to a system update, orders will be temporarily unavailable from October 31st, 8pm until November 2nd, 5pm. Thank you for your understanding.
FastCAM® ST-style connector. Pre-polished, field-installable connectors. Use precision zirconia ferrules. Require no polishing or epoxy curing, provide immediate termination. Precision mechanical termination uses molded v-groove technology to retain and align the fiber. Terminated on 250 or 900 micro-meter buffered fiber and/or 2 or 3 mm jacketed fiber. OM1 multi-mode. Higher yields with Visual Fault Locator (VFL) compatible LC, SC and ST connectors.
| Brand Name | Leviton | Sub Brand | FastCam® |
| Item Name | Pre-Polished Fiber Optic Connector | Type | Pre-Polished, Field-Installable |
| Fiber Type | ST OM1 Multimode | Color | Beige |
| Dimensions | 0.38 in dia x 1.81 in L | Return Loss | 25 dB |
| Temperature Rating | -40 to 75 °C | Standards | ANSI (TIA-568-C.3), ANSI (TIA-604-2) |
| Application | Commercial | UPC | 078477297384 |
| 1 - Unit | 50 - Crate | 9100 - Pallet |
