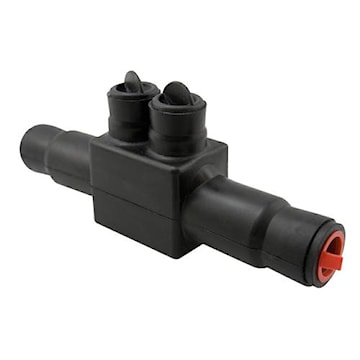

ILSCO USPA-500SS-DB ILSCO In-Line Splice Watertight
ilsuspa500ssdb
ILSCO USPA-500SS-DB ILSCO In-Line Splice Watertight
Price
$332.66
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:USPA-500SS-DB
Description
Watertight, underground in-line splice. Encapsulated in EPDM rubber with a nominal thickness of 125 Mils and a dielectric strength of 240 Volts per Mil. Connector is produced from high strength 6061-T6 aluminum alloy. Simply cut end inserts to appropriate marked wire size and insert conductor into connector. Suitable for use with either copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ILSCO |
| Item Name | In-Line Splice | Size | 5/16 in Hex |
| Voltage Rating | 600 V | Conductor Size | 500 kcmil - 10 AWG (Barrel A), 500 kcmil - 10 AWG (Barrel B) |
| Overall Length | 9.812 in | Type | Watertight |
| Color | Black | Finish | Wax |
| Temperature Rating | 90 °C | Standards | UL Listed, CSA Certified, ANSI Tested to 119.1 and 119.4, Tested to UL 486D, UL File No. E125087 |
| Application | For Copper and Aluminum Conductor | UPC | 783669941128 |
Packages
| 1 - Unit | 3 - Box |
