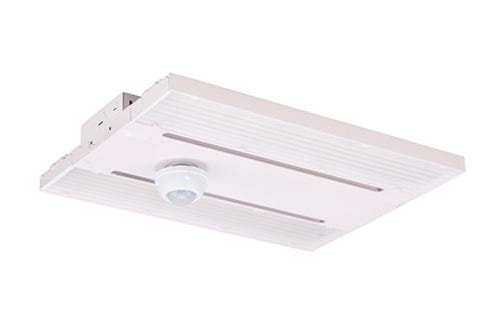

RAB DESIGN 081943 High Bay LED LH1S-LED110A60: 110A60W 120-347V Variable Temp White Finish Dimmable
rablh1sled110a60hvkcdwh
RAB DESIGN 081943 High Bay LED LH1S-LED110A60: 110A60W 120-347V Variable Temp White Finish Dimmable
Price
$177.80
/ EA
Inventory
In Stock
Manufacturer:RAB DESIGN
Manufacturer #:081943
Description
The LHBS-LED series is an easy to install fixture that provides well distributed uniform lighting and is ideal for large indoor spaces such as warehousing, commercial spaces and manufacturing applications. LHBS-LED is an ideal one-for-one replacement for conventional lighting systems such as HID and fluorescent. Steel housing with a white powder paint finish. Standard unit comes with a polycarbonate matte lens. Standard fixture has a high efficiency LED driver that operates at 120-347V. Drivers have a 4KV internal surge suppressor. The operating temperature is -25°C to +50°C.
Specifications
| Brand Name | Rab Design Lighting | Item Name | LED High Bay Fixture |
| Type | 0 - 10 V Dimmable, Linear | Voltage Rating | 120 - 347 V |
| Fixture Wattage | 105/80/60 W | Lamp Type | LED |
| Length | 14.19 in | Series | LHS-LED |
| Lumens | 15900/12400/9300 lm | Color Temperature | 3500/4000/5000 K |
| Color Rendering Index (CRI) | 84 | Lens Type | Glare-Free Polycarbonate |
| Mounting Type | Suspension, Surface, Pendant, T-Grid Drop Ceiling | Housing Material | Aluminum |
| Color | White | Width | 11.02 in |
| Height | 1.96 in | Temperature Rating | -40 to 55 °C |
| Standards | cULus Listed for Canada and USA, Per UL 1598, CSA C22.2 No. 250.0, DLC Premium Listed | Application | For Warehouses, Factories, Gymnasiums, Service Bays, Retail Stores, Workshops |
| UPC | 061184819437 |
Packages
| 1 - Unit | 4 - Crate | 96 - PALLETTE |
