INTEK4127S

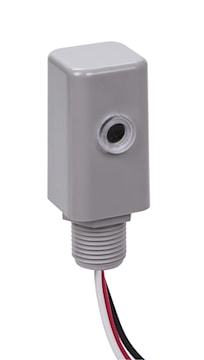

INTERMATIC EK4127S NIGHTFOX EK SERIES PREMIUM STEM MOUNT ELECTRONIC PHOTOCONTROL, 347 V
Description
NIGHTFOX EK Series Electronic Photocontrols are designed for permanent installation within outdoor-rated electrical enclosures, in-wall junction boxes, or lighting fixtures. This premium solution is suitable for use with high-efficiency, long-life LED luminaires. The unit mounts externally and requires a minimum enclosure aperture of 7/8" in diameter. Each control is equipped with 6" color-coded wire leads to ensure reliable and efficient installation.
Specifications
| Brand Name | NA | Item Name | Electronic Photocontrol |
| Type | Home Improvement & Commercial Supplies - Electrical & Lighting Sensor, Switches, Fuses and Gauges | Voltage Rating | 347 V |
| Frequency Rating | 50/60 Hz | Sensor Type | Electronic photocontrol |
| Material | Polycarbonate | Color | Gray |
| Finish | Plastic | Dimensions | 31.8 x 33.3 x 57.2 mm |
| Mounting | Stem Mount | Temperature Rating | 70.0 degrees C |
| Warranty | 8 YR | For Use With | Lighting, pathways |
| Standards | Ansi C136.24 | Application | Outdoor Lighting Control |
| UPC | 078275152373 |
Packages
| 1 - Unit |
