litnpppcdefp
ACUITY/LITHONIA 277KFH NPP SERIES FUSES, PHASE CONTROL DIMMING,
litnpppcdefp
ACUITY/LITHONIA 277KFH NPP SERIES FUSES, PHASE CONTROL DIMMING,
Price
$583.38
/ EA
Inventory
In Stock
Manufacturer:ACUITY/LITHONIA
Manufacturer #:277KFH
Description

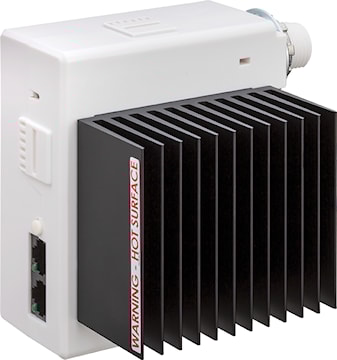

The nPP PCD power pack is an adaptive phase control dimmer that delivers significant performance and design versatility. It is designed to control large phase dimmed loads, controlling forward-phase-dimming and reverse-phase-dimming loads as large as 16A at 120VAC and 277VAC. This power pack also provides nLight bus power – up to 40MA from each of its two RJ-45 ports by transforming Class 1 line voltage (120-277 VAC) to Class 2 low voltage (24 VDC). This power is utilized by other nLight devices within the power pack’s local control zone.
Specifications
| Brand Name | Acuity Brands | Sub Brand | nLight |
| Item Name | Adaptive Dimmer Power Pack | Type | Wired Phase |
| Voltage Rating | 120 - 277 VAC | Amperage Rating | 80 mA |
| Frequency Rating | 50/60 Hz | Connection Type | RJ45 |
| Color | White | Series/Model | NPP |
| Output Rating | 24 VDC, 40 mA | Relay Type | Latching with Zero-Cross Protection |
| Dimensions | 4.72 in W x 3.53 in D x 4.82 in H | Cable Size | Category 5e |
| Mounting | 1/2 in Knockout | Humidity | Upto 90%, Non-Condensing |
| Temperature Rating | 14 - 122 °F | Warranty | 5 yr Limited |
| Includes | Replaceable Fuse | Standards | A+ Certified, ASHRAE 90.1, BABA Certified, BAA Certified, IECC, Title 24 Compliant |
| UPC | 196182688409 |
Packages
| 1 - Unit | 100 - PALLETTE |
