ilspdb2124/02
ILSCO PDB-212-4/0-2 AL MEC 2P LINE(2)4/0-6 LOAD(12)4-14T UR
ilspdb2124/02
ILSCO PDB-212-4/0-2 AL MEC 2P LINE(2)4/0-6 LOAD(12)4-14T UR
Price
$432.63
/ EA
Inventory
Available for backorder
Manufacturer:ILSCO
Manufacturer #:PDB-212-4/0-2
Description

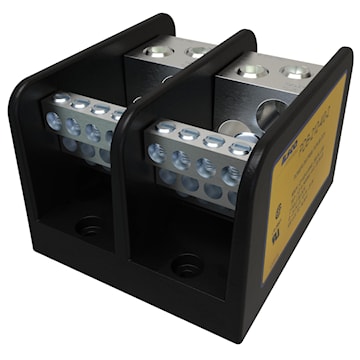

ILSCO Power Distribution Block, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,mounting bolt/stud size #10 in, mounting hole spacing 3.375 in., UL 1059 Recognized, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 4/0 Str - 6 Str, Copper/Aluminum Secondary Conductor 10 Sol - 14 Sol and 4 Str - 14 Str, 14 conductors, Drive Type Main 1/4 Internal Hex, Drive Type Tap Slotted, rated for 600 V, primary color Black, 2 poles, 2 ports per pole primary, 12 ports per pole secondary,
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Type | PDB:PWR DIST BLK AL/CU | Voltage Rating | 600 V |
| Amperage Rating | 460 A cubic | Number of Poles | 2 Pole |
| Temperature Rating | 90 °C | Color | Black |
| Standards | CSA File Number:LR-29601;UL Control Number:NA;UL File Number:E84782;UL / CULUS Specification:UL 1059 Recognized | Application | Power Distribution Block |
| UPC | 783669710649 |
Packages
| 1 - Unit |
