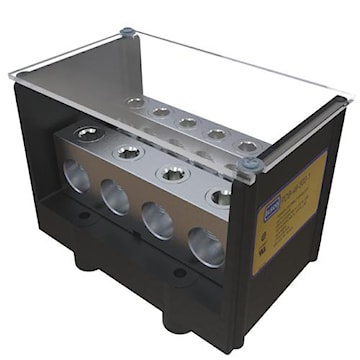

ILSCO PDB-49-500-1 ClearChoice Power Distribution Block 1 P, 1520 A/Pole,
ilspdb495001
ILSCO PDB-49-500-1 ClearChoice Power Distribution Block 1 P, 1520 A/Pole,
Price
$401.48
/ EA
Inventory
In Stock
Manufacturer:ILSCO
Manufacturer #:PDB-49-500-1
Description
Dual rated power distribution block manufactured from high strength 6061-T6 aluminum alloy. Three different connector configurations provide a wide range of tapping capabilities for up to four primary conductors. Provides a high degree of impact resistance with superior insulating qualities. Permits visual inspection. Ensures reliability. Provides low contact resistance. Suitable for use with either copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Power Distribution Block | Type | PDB:PWR DIST BLK AL/CU |
| Voltage Rating | 600 V | Amperage Rating | 1520 A/Pole |
| Number of Poles | 1 | Conductor Size | (4) 500 kcmil - 4 AWG Primary, (6) 6 AWG - 350 kcmil, (3) 4/0-6 AWG Secondary |
| Connection Type | Screw | Temperature Rating | 90 °C |
| Block Material | Aluminum | Color | Black |
| For Use With | Copper or Aluminum Conductors | Standards | UL 1059, UL File Number E84782, CSA File Number LR29601 |
| Application | Tap Connector | UPC | 783669711509 |
Packages
| 1 - Unit |
