WECO ELECTRICAL CONNECTORS INC 322-D-SV-DS/04

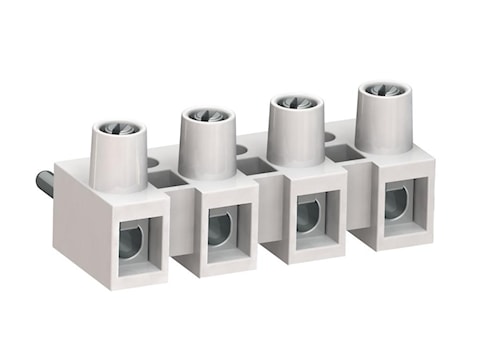

THE 322-D-SV IS BASED ON OUR ESTABLISHED PLUG-IN TERMINAL STRIP 322-SV. THE CLAMPING SPACE IS ENLARGED FOR 2X2,5 MM² SOLID WIRE WITHOUT WIRE PROTECTOR OR 2X1,5 MM² WITH WIRE PROTECTOR. THEREFORE, THIS VERSION IS MOST SUITABLE WHEN CONNECTIONS OF TWO WIRES PER POLE ARE REQUIRED.WITH THE EXCEPTION OF THE CLAMPING SYSTEM, THE MEASUREMENTS CONFORM TO THE STANDARD DESIGN.THE SCREWS HAVE A SLOTTED, AS WELL AS A CROSS SLOT (PLUS-MINUS SCREW)IN COMBINATION WITH THE PLUG-IN TERMINAL STRIP 323-FB, THIS CONNECTOR PROVIDES THE CONTACT PRESSURE VIA A STAINLESS STEEL SPRING WHICH ENSURES GOOD ELECTRICAL CONTACT. PLUG-IN DIRECTION IS PARALLEL TO EACH OTHER.THE WIRE PROTECTOR OF THE “DS”-VERSION RELIABLY PREVENTS DAMAGE TO MULTI-WIRE FLEXIBLE CONDUCTORS BY THE TURNING SCREW.THESE TERMINALS STRIPS CAN BE SCREW-MOUNTED ON A SUBSTRATE.
