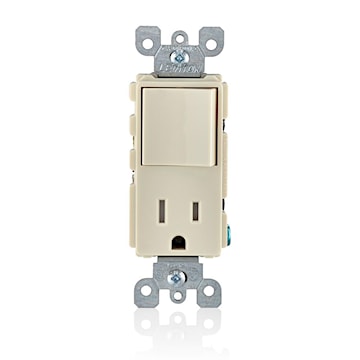

LEVITON 5625-TSP Switch/receptacle combination 2P 3W 125V 15AMP light almond
lev5625tsp
LEVITON 5625-TSP Switch/receptacle combination 2P 3W 125V 15AMP light almond
Price
$32.26
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5625-TSP
Description
Decora® Combination switch is the perfect choice for any area in a home. Its simple, functional design allows you to save space wherever the switch is installed. Beautifully styled and part of the notable Decora® line, the switch comes in a variety of popular colors. Its impact-resistant exterior ensures damage protection and a long service life.
Specifications
| Brand Name | Leviton | Sub Brand | Decora® |
| Item Name | Combination Switch and Receptacle | Type | Impact-Resistant |
| Voltage Rating | 120/125 V | Amperage Rating | 15 A (Switch), 20 A (Device) |
| NEMA Configuration | NEMA 5-15R | Dimensions | 1.31 in W x 4.2 in H x 0.93 in D |
| Number of Poles | 2 | Number of Wires | 3 |
| Switch Type | Rocker | Terminal Connection | Side Wired |
| Material | Thermoplastic | Color/Finish | Light Almond |
| NEMA Rating | NEMA 5-15R | Mounting Type | Wallplate |
| Temperature Rating | -40 to 120 °C | Standards | UL Listed (E-7458), CSA Certified (LR-3413), NOM Certified (057), Rated V-2 per UL94 |
| Application | For Commercial Use | UPC | 078477275047 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate | 3200 - Pallet |
