lev16252r

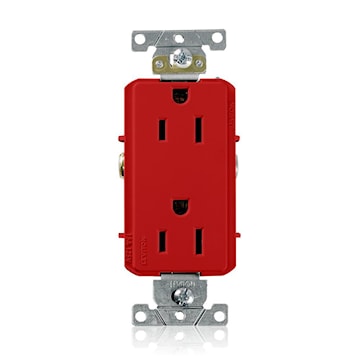

LEVITON 16252-R Decora Plus™ Duplex Outlet 15 A, 125 V,
lev16252r
LEVITON 16252-R Decora Plus™ Duplex Outlet 15 A, 125 V,
Price
$13.69
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:16252-R
Description
Decora Plus Duplex Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Back or Side Wire, NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Red
Specifications
| Brand Name | Leviton | Sub Brand | Decora Plus™ |
| Item Name | Duplex Outlet | Type | Duplex Outlet |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-10 AWG | Dimensions | 1.52 in W x 1.14 in D x 46 in H |
| Number of Poles | 2,2 | Number of Wires | 3,3 |
| Material | Zinc-Plated Steel | Mounting Type | Wallplate |
| Temperature Rating | -40 °C to 60 °C | Standards | NEMA (WD-6), ANSI (C-73), NOM Certified (057), CSA Certified (File 152105), UL Listed (File E-13393), UL498 Listed |
| Application | Industrial/Commercial | UPC | 078477663110 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
