levt5632hgw

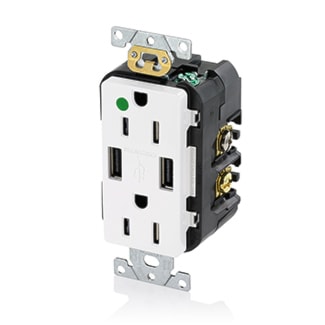

LEVITON T5632-HGW Combination Duplex Receptacle and USB Charger 15 A, 125 V, White
levt5632hgw
LEVITON T5632-HGW Combination Duplex Receptacle and USB Charger 15 A, 125 V, White
Price
$30.70
/ EA
Inventory
In Stock
Manufacturer:LEVITON
Manufacturer #:T5632-HGW
Description
Hospital grade combination duplex receptacle and USB charger. 15 Amp, 125 Volt, Decora Tamper-Resistant Receptacle. NEMA 5-15R. 3.6 Amps, 5VDC, 2.0 Type A USB Chargers. Grounding, side wired back wired.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Combination Duplex Receptacle and USB Charger | Type | Tamper-Resistant |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| NEMA Configuration | NEMA 5-15R | Conductor Size | 14-12 AWG |
| Enclosure Standard | WD-6 | Dimensions | 1.73 in W x 1.67 in D x 2.79 in H |
| Number of Poles | 2 | Number of Wires | 3 |
| Terminal Connection | Screw Terminal | Material | PBT Thermoplastic Polyester Resin Body, Face, Steel Screw, Strap, Brass Ground Clip |
| Color/Finish | White | Temperature Rating | -10 to 40 deg C |
| Standards | UL 498 and 1310, CSA C22.2 Nos. 42 and 223, cCSAus Certified | Application | For Hospital Grade Applications |
| UPC | 078477685471 |
Packages
| 1 - Unit | 10 - Crate | 2320 - Pallet |
