LEVOSC20RMW

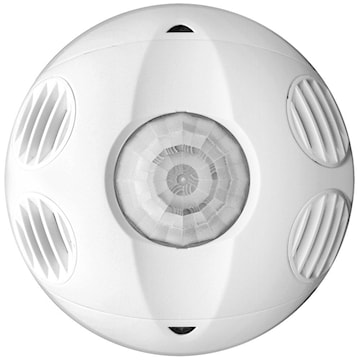

LEVITON OSC20-RMW Occupancy Sensor Passive Infrared;Ultrasonic 24 VDC,
Occupancy sensors have two tasks: Keeping the lights ON while the room is occupied and saving energy by keeping the lights OFF while the room is unoccupied. sensors combine the benefits of both PIR and U/S technologies for unrivaled performance and reliability. Additionally, the sensor is designed with an isolated relay contact; which enables the sensor to interface with other systems (example: BAS, HVAC or any dry-contact capable device or system). Self-Adjusting: Internal microprocessor continually analyzes, evaluates and adjusts the sensitivity and time delay. Performance is kept at a maximum and user complaints are eliminated.
| Brand Name | Leviton | Sub Brand | OCC SENSORS LOW VOLTAGE |
| Item Name | Occupancy Sensor | Type | Passive Infrared,Ultrasonic |
| Grade | Commercial | Voltage Rating | 24 VDC |
| Sensor Type | Ultrasonic, Passive Infrared | Sensing Distance | 2000 ft² |
| Coverage Area | 2000 ft² | Color | White |
| Mounting Type | Ceiling | Frequency Rating | 32 kHz |
| Dimensions | 4.2 in W x 1.57 in D | Temperature Rating | 0 °C to 40 °C |
| Standards | cULus 9034, NOM 057 Certified, California Title 24, ANCE, ASHRAE 90.1, FCC Compliant | Application | For Commercial use |
| UPC | 078477543535 |
| 1 - Unit | 10 - Crate | 960 - Pallet |
