lev3325gc

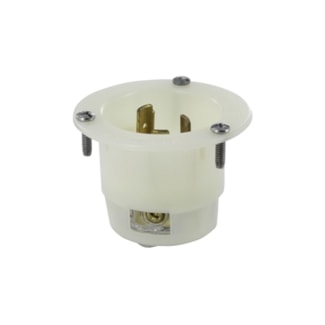

LEVITON 3325-GC Black & White Flanged Inlet 20 A, 125/250 V, Locking Flanged Inlet
lev3325gc
LEVITON 3325-GC Black & White Flanged Inlet 20 A, 125/250 V, Locking Flanged Inlet
Price
$65.35
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:3325-GC
Description
Leviton's industry leading locking devices, such as our Black White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Flanged Inlet | Type | Locking Flanged Inlet |
| Number of Wires | 3 | Number of Poles | 3 |
| Voltage Rating | 125/250 V | Amperage Rating | 20 A |
| Conductor Size | 16-8 AWG | Color/Finish | White |
| Terminal Connection | Back Wired | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Brass | NEMA Rating | Non-Nema |
| Dielectric Strength | 2000 V | Material | Nylon |
| Grounding | Grounding | Mounting Type | Flange |
| Dimensions | 2-7/8 in dia x 2-1/16 in H | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Listed 498 (File E13393) | Application | For Commercial |
| UPC | 078477829608 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
