lev3434c

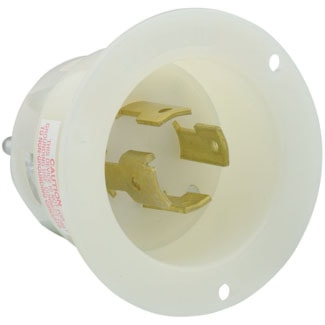

LEVITON 3434-C Black & White Flanged Inlet 30 A, 120/208 V, Locking
lev3434c
LEVITON 3434-C Black & White Flanged Inlet 30 A, 120/208 V, Locking
Price
$136.81
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:3434-C
Description
Leviton's industry leading locking devices, such as our Black White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Flanged Inlet | Type | Locking |
| Number of Wires | 4 | Number of Poles | 4 |
| Voltage Rating | 120/208 V | Amperage Rating | 30 A |
| Conductor Size | 16-8 AWG | Phase | 3 |
| Terminal Connection | Back Wired | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Solid Brass | NEMA Rating | Non-Nema |
| Dielectric Strength | 2000 V | Material | Nylon |
| Grounding | Non-Grounding | Mounting Type | Flange |
| Dimensions | 33 in dia | Environmental Conditions | Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Fed Spec WC-596 (File E13393), UL Listed 498 (File E13393) | Application | For Commercial |
| UPC | 078477816882 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
