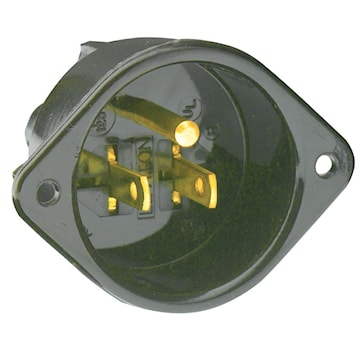

LEVITON 5239 Flanged Inlet 15 A, 125 V, Straight Blade Plug
lev5239
LEVITON 5239 Flanged Inlet 15 A, 125 V, Straight Blade Plug
Price
$44.36
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5239
Description
Flanged inlet receptacle, Straight blade, Black, 15 A, 125 V, Commercial grade, Grounding, Back wired, Nylon, Thermoplastic nylon strap, NEMA 5-15P, Withstands dielectric voltage of 2000 V per UL498, Captive, Color-coded brass #8 terminal screws.
Specifications
| Brand Name | Leviton | Sub Brand | Straight Blade Plugs and Conn |
| Item Name | Flanged Inlet | Type | Straight Blade Plug |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 18 - 10 AWG | NEMA Configuration | 5-15P |
| Color/Finish | Black | Terminal Connection | Back Wired |
| Temperature Rating | -40 °C to 60 °C | NEMA Rating | 5-15P |
| Material | Nylon (Body) | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 1.78 in D x 2.11 in H |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL 498 (File E13393) |
| Application | Commercial, Industrial | UPC | 078477228906 |
Packages
| 1 - Unit | 10 - Box | 20 - Crate | 4200 - Pallet |
