lev5478c

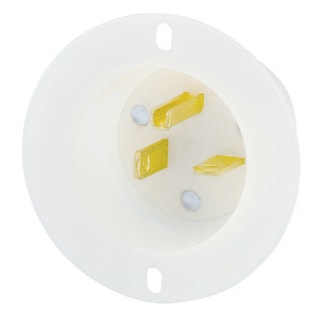

LEVITON 5478-C Receptacle straight flanged inlet 2P 3W 250V 20AMP white
lev5478c
LEVITON 5478-C Receptacle straight flanged inlet 2P 3W 250V 20AMP white
Price
$55.24
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5478-C
Description
Leviton straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass-filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather-resistant fit.
Specifications
| Brand Name | Leviton | Sub Brand | Locking Devices |
| Type | Standard, Single | Number of Wires | 3 |
| Number of Poles | 2 | Voltage Rating | 250 V |
| Amperage Rating | 20 A | Temperature Rating | -40 to 60 °C |
| NEMA Rating | 6-20P | Dielectric Strength | 2000 (Min.) |
| Material | Nylon | Grounding | Grounding |
| Mounting Type | Flange | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed 498 (File E13399) | Application | Commercial |
| UPC | 078477796078 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 3570 - Pallet |
