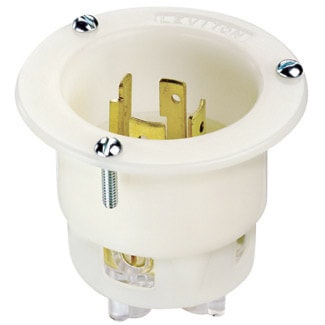

LEVITON 7408-C Receptacle locking flanged inlet 4P4W 120/208V 20AMP white
lev7408c
LEVITON 7408-C Receptacle locking flanged inlet 4P4W 120/208V 20AMP white
Price
$134.61
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:7408-C
Description
Levitons industry leading locking devices, such as our black white line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Locking Devices |
| Type | Locking Flanged Inlet | Number of Wires | 4 |
| Number of Poles | 4 | Voltage Rating | 120/208 V |
| Amperage Rating | 20 A | Phase | 3 |
| Temperature Rating | -40 To 60 °C | Contact Material | Brass,Solid Brass |
| NEMA Rating | Non-Nema | Dielectric Strength | 2000 (Min.) |
| Material | Thermoplastic Nylon | Grounding | Non-Grounding |
| Mounting Type | Flange | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13393) | Application | Commercial |
| UPC | 078477829714 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
