lev3335c

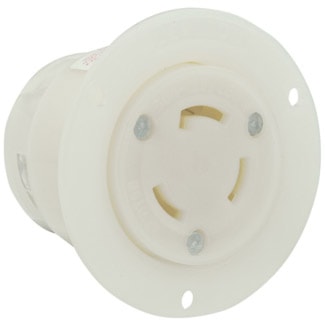

LEVITON 3335-C Receptacle locking flanged outlet 3P 3W 125/250V 30AMP white
lev3335c
LEVITON 3335-C Receptacle locking flanged outlet 3P 3W 125/250V 30AMP white
Price
$143.24
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:3335-C
Description
Leviton's industry leading locking devices, such as our black white line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Type | Locking | Size | 33 Dia. IN |
| Voltage Rating | 125/250 V | Amperage Rating | 30 A |
| Number of Poles | 3 | Number of Wires | 3 |
| Connection Type | Back Wired | NEMA Rating | Non-Nema |
| Material | Nylon | Color | White |
| Dielectric Strength | 2000 (Min.) | Grounding | Non-Grounding |
| Contact Material | Brass | Mounting Type | Flange |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) | Application | Commercial |
| UPC | 078477818329 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
