lev4715c

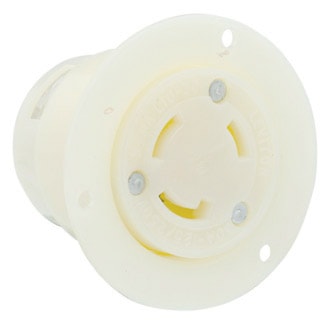

LEVITON 4715-C Receptacle locking flanged outlet 2P 3W 125V 15AMP white
lev4715c
LEVITON 4715-C Receptacle locking flanged outlet 2P 3W 125V 15AMP white
Price
$59.97
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:4715-C
Description
Levitons industry leading locking devices, such as our black white line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | LOCKING DEVICES |
| Type | Locking | Size | 2.50 Dia x 1.78 H IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back Wired | NEMA Rating | L5-15R |
| Material | Nylon | Color | White |
| Dielectric Strength | 2000 (Min.) | Grounding | Grounding |
| Contact Material | Brass,Solid Brass | Mounting Type | Flange |
| Temperature Rating | -40 to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13399) | Application | Commercial |
| UPC | 078477795552 |
Packages
| 1 - Unit | 10 - Box | 30 - Crate | 3570 - Pallet |
