lev90w33s

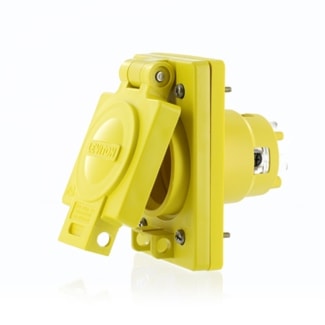

LEVITON 90W33-S Wetguard® Single Outlet Straight Blade Single Outlet 20 A, NEMA 4, 4X, 12 Yellow
lev90w33s
LEVITON 90W33-S Wetguard® Single Outlet Straight Blade Single Outlet 20 A, NEMA 4, 4X, 12 Yellow
Price
$284.09
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:90W33-S
Description
Straight single outlet. Industrial grade grounding. Watertight and dust-tight devices.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Straight Blade Single Outlet | Type | Single Outlet |
| Grade | Industrial | Voltage Rating | 125 VAC |
| Amperage Rating | 20 A | Wire Type | Grounding |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | NEMA Rating | NEMA 4, 4X, 12 |
| Conductor Size | 16-10 AWG | Color | Yellow |
| Degree of Protection | IP66 | Terminal Connection | Screw |
| Dielectric Strength | 2000 V | Grounding | Grounding |
| Contact Material | Brass | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | UL 94 V-2 Flammability | Standards | UL 498, CSA C22.2 No. 42, NEMA WD-6, ANSI C-73, NOM 057 Certified |
| Application | Industrial | UPC | 078477519479 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
