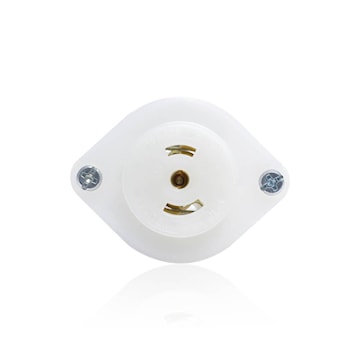

LEVITON ML3-PER Receptacle locking flanged outlet 3P 3W 125V 15AMP white
levml3per
LEVITON ML3-PER Receptacle locking flanged outlet 3P 3W 125V 15AMP white
Price
$58.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:ML3-PER
Description
Flanged receptacle are built to endure hard use with rugged nylon flanges that assure a smooth, flush fit and outstanding resistance to cracking and breaking. Offers a smaller form factor for limited-space applications.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Type | Locking | Size | 1.63 W IN |
| Voltage Rating | 125/250 V | Amperage Rating | 15 A |
| Number of Poles | 3 | Number of Wires | 3 |
| NEMA Rating | ML1R | Material | Nylon |
| Color | White | Grounding | Non-Grounding |
| Contact Material | Brass | Environmental Conditions | Operating Temperature Range (-40 to 60) °C |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13393);UL Fed Spec WC-596 (File E13393) | Application | Industrial |
| UPC | 078477987377 |
Packages
| 1 - Unit | 10 - Box | 20 - Crate | 4200 - Pallet |
