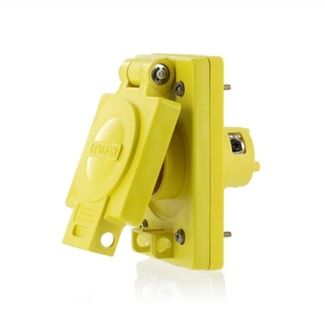

LEVITON 64W34 Wetguard® Locking Inlet 15 A, 277 VAC, Single
lev64w34
LEVITON 64W34 Wetguard® Locking Inlet 15 A, 277 VAC, Single
Price
$207.52
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:64W34
Description
Wetguard® Locking single inlet, industrial grade, grounding, NEMA L7-15.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Inlet | Type | Single |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 277 VAC | Amperage Rating | 15 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | NEMA L7-15P |
| Color/Finish | Yellow | Cord Size | 0.234 - 0.687 in |
| Terminal Connection | Screw | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Nickel Plated Brass | NEMA Rating | NEMA 4, 4X, 12 |
| Dielectric Strength | 2000 V | Material | Santoprene TPV Cover Gasket, Valox PBT Lid |
| Grounding | Yes | Degree of Protection | IP66 |
| Dimensions | 3.13 in W x 2.9 in D x 4.63 in H | Environmental Conditions | Corrosion-Resistant, Wet Location, UL 94-V2 Flammability Rating |
| Standards | ANSI Approved, CSA Certified, UL Listed | Application | For Industrial use |
| UPC | 078477519103 |
Packages
| 1 - Unit | 6 - Crate | 1050 - Pallet |
