lev66w74

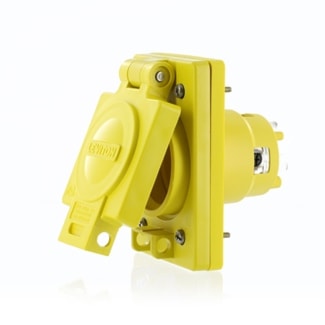

LEVITON 66W74 Wetguard® Locking Inlet 20 A, 125/250 VAC, Single
lev66w74
LEVITON 66W74 Wetguard® Locking Inlet 20 A, 125/250 VAC, Single
Price
$281.31
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:66W74
Description
Wetguard® Single locking inlet with IP66 rated cover. Industrial grade, grounding, corrosion resistant, NEMA L14-20.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Inlet | Type | Single |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 125/250 VAC | Amperage Rating | 20 A |
| Conductor Size | 16-10 AWG | NEMA Configuration | NEMA L7-20P |
| Color/Finish | Yellow | Cord Size | 0.375 - 0.875 in |
| Terminal Connection | Screw | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Nickel Plated Brass | NEMA Rating | NEMA 4, 4X, 12 |
| Dielectric Strength | 2000 V | Material | Santoprene TPV Cover Gasket, Valox PBT Lid |
| Grounding | Yes | Degree of Protection | IP66 |
| Dimensions | 3.13 in W x 3.64 in D x 4.63 in H | Environmental Conditions | Corrosion-Resistant, Wet Location, UL 94-V2 Flammability Rating |
| Standards | ANSI Approved, CSA Certified, UL Listed | Application | For Industrial use |
| UPC | 078477519219 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
