lev68w76

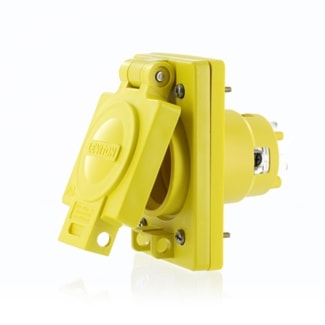

LEVITON 68W76 Wetguard® Locking Inlet 30 A, 480 VAC, Single
lev68w76
LEVITON 68W76 Wetguard® Locking Inlet 30 A, 480 VAC, Single
Price
$390.49
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:68W76
Description
Wetguard® Single locking inlet with IP66 rated cover. Industrial grade, grounding, corrosion resistant, 3-phase, 4W, NEMA L16-30.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Inlet | Type | Single |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 480 VAC | Amperage Rating | 30 A |
| Conductor Size | 12-8 AWG | NEMA Configuration | NEMA L16-30P |
| Color/Finish | Yellow | Cord Size | 0.625 - 1.875 in |
| Phase | 3 | Terminal Connection | Screw |
| Temperature Rating | -40 °C to 60 °C | Contact Material | Nickel Plated Brass |
| NEMA Rating | NEMA 4, 4X, 12 | Dielectric Strength | 2000 V |
| Material | Santoprene TPV Cover Gasket, Valox PBT Lid | Grounding | Yes |
| Degree of Protection | IP66 | Dimensions | 3.13 in W x 3.64 in D x 4.63 in H |
| Environmental Conditions | Corrosion-Resistant, Wet Location, UL 94-V2 Flammability Rating | Standards | ANSI Approved, CSA Certified, UL Listed |
| Application | For Industrial use | UPC | 078477519400 |
Packages
| 1 - Unit | 5 - Crate | 600 - Pallet |
