lev5369cy

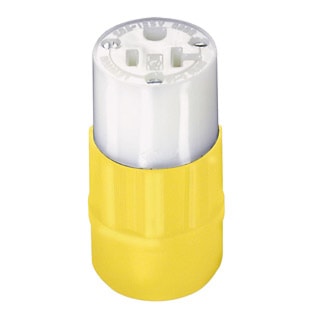

LEVITON 5369-CY Black & White Plug Straight Blade Connector 20 A, 5-20R Yellow
lev5369cy
LEVITON 5369-CY Black & White Plug Straight Blade Connector 20 A, 5-20R Yellow
Price
$77.79
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5369-CY
Description
The Leviton line of straight blade plugs and connectors includes: black white industrial grade devices that resist impact, corrosion and chemicals; Wetguard® for water or moisture resistance; Dustgard® for dust and dirt; Python™ with an innovative interlocking design; rugged nylon flanged and outlets; and integrated inlets and outlets with weather resistant covers.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Connector | Type | Plug |
| Grade | Industrial | Size | 1.49 Dia x 2.76 H IN |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | NEMA Rating | 5-20R |
| Conductor Size | 18 - 10 AWG | Material | Super Tough Nylon (Body) |
| Color | Yellow | Grounding | Grounding |
| Contact Material | Solid Brass | Dimensions | 1.49 in dia x 2.76 in H |
| Mounting Type | Cable | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL 498 (File E13399), UL Fed Spec WC-596 (File E13393) |
| Application | Industrial | UPC | 078477795958 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3600 - Pallet |
