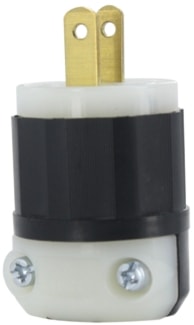

LEVITON 5866-C Plug straight 2P 2W 125V 15AMP black-white
lev5866c
LEVITON 5866-C Plug straight 2P 2W 125V 15AMP black-white
Price
$42.60
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5866-C
Description
The Leviton line of straight blade plugs and connectors includes: Black and White industrial grade devices that resist impact, corrosion and chemicals; Wetguard for water or moisture resistance; Dustgard for dust and dirt; Python with an innovative interlocking design; rugged nylon flanged and outlets; and integrated inlets and outlets with weather resistant covers.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Power Plug | Type | Straight Blade Plug |
| Number of Wires | 2 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | NEMA WD-1, WD-6 |
| Color/Finish | Black/White | Cord Size | 0.23 - 0.65 in |
| Terminal Connection | Screw | Contact Material | Solid Brass |
| NEMA Rating | 1-15P | Dielectric Strength | 2000 V |
| Material | Super Tough Nylon (Body), Zinc Plated Steel Screw | Grounding | No |
| Mounting Type | Cable | Dimensions | 1.53 in dia x 2.65 in H |
| Environmental Conditions | -40 to 60 °C | Standards | ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Listed 498 (File E13399), UL Fed Spec WC-596 (File E13393) |
| Application | For Industrial Use | UPC | 078477477168 |
Packages
| 1 - Unit | 10 - Crate | 3600 - Pallet |
