lev8315cat

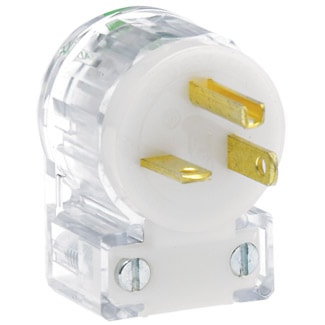

LEVITON 8315-CAT Plug straight 2P 3W 125V 20AMP angle-black-white
lev8315cat
LEVITON 8315-CAT Plug straight 2P 3W 125V 20AMP angle-black-white
Price
$63.96
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8315-CAT
Description
Plug, straight blade, hospital grade, grounding, angle - black-white.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Power Plug | Type | Angled, Hospital Grade |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | NEMA WD-1, WD-6 |
| Color/Finish | Black/White | Cord Size | 1/4 - 0.685 in |
| Terminal Connection | Screw | Contact Material | Solid Brass |
| NEMA Rating | 5-20P | Material | Super Tough Nylon (Body), Zinc Plated Steel Screw |
| Grounding | Yes | Mounting Type | Cable |
| Dimensions | 1.53 in W x 1.3 in D x 29 in H | Environmental Conditions | -40 to 60 °C |
| Standards | ANSI C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Listed 498 (File E13393) | Application | Hospitals |
| UPC | 078477799116 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3600 - Pallet |
