lev8315plc

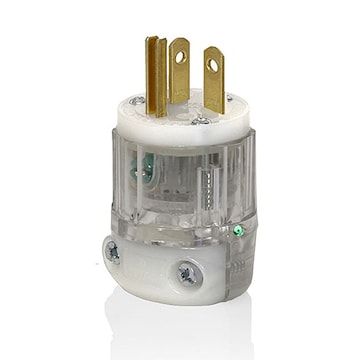

LEVITON 8315-PLC Black & White Straight Blade Plug 20 A, 125 V, Straight Blade Plug
lev8315plc
LEVITON 8315-PLC Black & White Straight Blade Plug 20 A, 125 V, Straight Blade Plug
Price
$80.39
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8315-PLC
Description
Leviton's black and white line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Plug | Type | Straight Blade Plug |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Conductor Size | 18-10 AWG | Color/Finish | Transparent Orange |
| Cord Size | 0.25 - 0.685 in | Terminal Connection | Screw |
| Temperature Rating | -40 °C to 60 °C | Contact Material | Solid Brass |
| NEMA Rating | 5-20P | Material | Super Tough Nylon |
| Grounding | Grounding | Mounting Type | Cable |
| Dimensions | 1.53 in dia x 1.98 in H | Environmental Conditions | Operating Temperature Range (-40 to 60) °C |
| Includes | Zinc Plated Steel | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL Listed 498 (File E13399), UL Federal Specifications WC-596 (File E13393) |
| Application | For Hospitals | UPC | 078477978726 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 5000 - Pallet |
