lev8462p

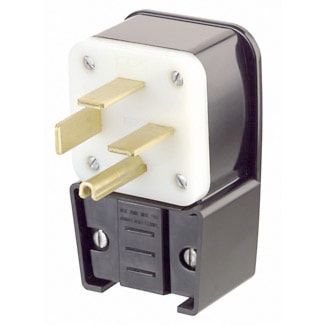

LEVITON 8462-P Black & White Straight Blade Power Plug 60 A, 250 V, Angled
lev8462p
LEVITON 8462-P Black & White Straight Blade Power Plug 60 A, 250 V, Angled
Price
$256.51
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8462-P
Description
Industrial grade straight blade plug made of super tough nylon. Solid brass blades/contacts and steel, zinc plated assembly screws. Leviton's heavy duty industrial power plugs offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Power Plug | Type | Angled |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 250 V | Amperage Rating | 60 A |
| Conductor Size | 10 - 4 AWG | NEMA Configuration | 15-60P |
| Color/Finish | Black | Phase | 3 |
| Terminal Connection | Screw Terminal | Temperature Rating | -40 °C to 60 °C |
| Maximum Load Capacity | 10 hp | NEMA Rating | 15-60P |
| Material | Super Tough Nylon (Body) | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 2.76 in W x 1.89 in D x 4.37 in H |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL 498 (File E13399) |
| Application | Industrial | UPC | 078477810002 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
