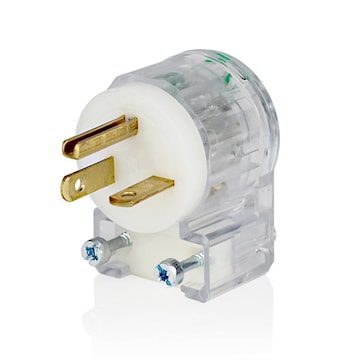

LEVITON 8415-CAT Black & White Straight Blade Plug 20 A, 250 V, Hospital Grade, Angled
lev8415cat
LEVITON 8415-CAT Black & White Straight Blade Plug 20 A, 250 V, Hospital Grade, Angled
Price
$95.73
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:8415-CAT
Description
Leviton's black and white line of industrial grade plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Plug | Type | Hospital Grade, Angled |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 250 V | Amperage Rating | 20 A |
| Conductor Size | 18 - 10 AWG | NEMA Configuration | 6-20P |
| Color/Finish | Black/White | Temperature Rating | -40 °C to 60 °C |
| Contact Material | Solid Brass | NEMA Rating | 6-20P |
| Material | Super Tough Nylon (Body) | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 1.53 in W x 1.3 in D x 29 in H |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL 498 (File E13399), UL Fed Spec WC-596 (File E13393) |
| Application | Hospitals | UPC | 078477954836 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3600 - Pallet |
