lev9332p

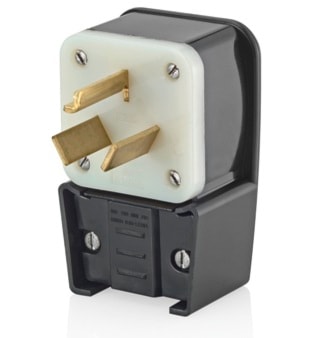

LEVITON CANADA 9332-P Plug straight 3P 3W 125/250V 30AMP angle-black
lev9332p
LEVITON CANADA 9332-P Plug straight 3P 3W 125/250V 30AMP angle-black
Price
$177.26
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON CANADA
Manufacturer #:9332-P
Description
Leviton's heavy duty industrial power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.
Specifications
| Brand Name | Leviton | Sub Brand | Straight Blade Plugs and Conn |
| Item Name | Straight Blade Power Plug | Type | Angled |
| Number of Wires | 3 | Number of Poles | 3 |
| Voltage Rating | 125/250 V | Amperage Rating | 30 A |
| Conductor Size | 10-4 AWG | NEMA Configuration | NEMA WD-1, WD-6 |
| Color/Finish | Black | Cord Size | 5/8 - 1-3/8 in |
| Terminal Connection | Screw | Maximum Load Capacity | 2 hp |
| Contact Material | Solid Brass | NEMA Rating | 10-30P |
| Dielectric Strength | 2000 V | Material | Super Tough Nylon (Body), Zinc Plated Steel Screw |
| Grounding | No | Mounting Type | Cable |
| Dimensions | 2.76 in W x 1.89 in D x 4.37 in H | Environmental Conditions | -40 to 60 °C |
| Standards | ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Listed 498 (File E13399) | Application | For Industrial Use |
| UPC | 078477809938 |
Packages
| 1 - Unit | 10 - Crate | 900 - Pallet |
