levms2p

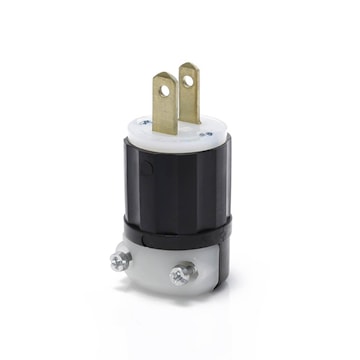

LEVITON MS2-P Plug straight blade 2P 2W 125V 15AMP black-white
levms2p
LEVITON MS2-P Plug straight blade 2P 2W 125V 15AMP black-white
Price
$31.55
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:MS2-P
Description
Leviton's black white midget line of industrial grade locking blade plug are feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid one-piece construction for superior conductivity. The ergonomic, fluted-body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Straight Blade Power Plug | Type | Straight Blade Plug |
| Number of Wires | 2 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 18-14 AWG | NEMA Configuration | NEMA WD-1, WD-6 |
| Color/Finish | Black/White | Cord Size | 0.218 - 0.43 in |
| Terminal Connection | Screw | Contact Material | Solid Brass |
| NEMA Rating | 1-15P | Dielectric Strength | 2000 V |
| Material | Super Tough Nylon (Body), Zinc Plated Steel Screw | Grounding | No |
| Mounting Type | Cable | Environmental Conditions | -40 to 60 °C |
| Standards | ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Listed 498 (File E13399) | Application | For Industrial Use |
| UPC | 078477011737 |
Packages
| 1 - Unit | 10 - Box | 20 - Crate | 4200 - Pallet |
