lev3333

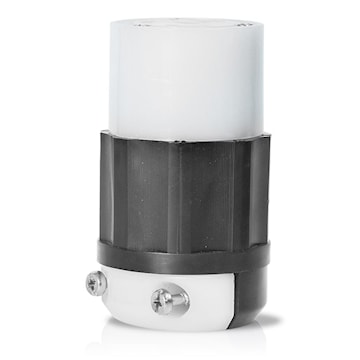

LEVITON 3333 Connector locking 3P3W 125/250V 30A black-white
lev3333
LEVITON 3333 Connector locking 3P3W 125/250V 30A black-white
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:3333
Description
Levitons industry leading locking grade connector offer superior performance, long lasting reliability. Ergonomic fluted body design with radial grip ridge is ideal for gripping, turning and pulling. NEMA configuration, agency certifications and device rating are molded on front of the device to assist with identifications. Molded in strip gage provides measurement for proper strip length of conductor.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Type | Straight | Size | 2-5/64 Dia x 3-17/32 H IN |
| Voltage Rating | 125/250 V | Amperage Rating | 30 A |
| Number of Poles | 3 | Number of Wires | 3 |
| Material | Super Tough Nylon | Color | Black,White |
| Grounding | Non-Grounding | Contact Material | Brass (Line Contacts), Solid Brass (Blades/Contacts) |
| Mounting Type | Cable | Environmental Conditions | Operating Temperature Range (-40 to 60) °C |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Listed 498 (File E13399) | Application | Industrial |
| UPC | 078477816844 |
Packages
| 1 - Unit | 10 - Crate | 2700 - Pallet |
