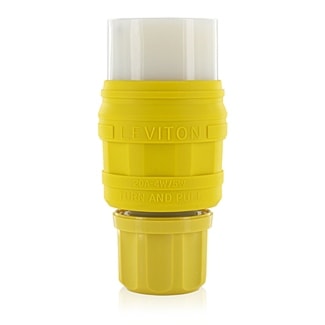

LEVITON 76W81-C Connector locking 4P 5W 120/208V 20AMP yellow
lev76w81c
LEVITON 76W81-C Connector locking 4P 5W 120/208V 20AMP yellow
Price
$234.82
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:76W81-C
Description
Wetguard® Locking connector for single inlet, industrial grade, grounding, 3-phase WYE, NEMA L21-20.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Type | Locking,Watertight Connector | Size | 2.31 Diameter X 4.68 L IN |
| Voltage Rating | 120/208 V | Amperage Rating | 20 A |
| Number of Poles | 4 | Number of Wires | 5 |
| Connection Type | Screw Terminal | NEMA Rating | L21-20R |
| Material | TPV | Color | Black on Yellow |
| Phase | 3 | Grounding | Grounding |
| Mounting Type | Cable | Environmental Conditions | Operating Temperature Range (-40 to 60) °C |
| Standards | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA (C22.2 No.42);UL (498) | Application | Industrial |
| UPC | 078477525517 |
Packages
| 1 - Unit | 10 - Crate | 640 - Pallet |
