lev78w81c

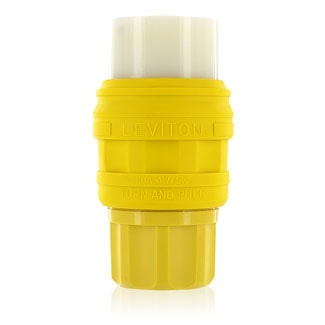

LEVITON 78W81-C Wetguard® Watertight Locking Connector 30 A, L21-30R Yellow
lev78w81c
LEVITON 78W81-C Wetguard® Watertight Locking Connector 30 A, L21-30R Yellow
Price
$296.77
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:78W81-C
Description
Wetguard® Locking connector for single inlet, industrial grade, grounding, 3-phase WYE, NEMA L21-30.
Specifications
| Brand Name | Leviton | Sub Brand | Wetguard® |
| Item Name | Locking Connector | Type | Watertight |
| Grade | Industrial | Size | 2.75 Diameter X 4.68 L IN |
| Voltage Rating | 120/208 V | Amperage Rating | 30 A |
| Number of Poles | 4 | Number of Wires | 5 |
| NEMA Configuration | L21-30R | Connection Type | Screw Terminal |
| NEMA Rating | L21-30R | Conductor Size | 12 - 8 AWG |
| Material | TPV | Color | Yellow |
| Phase | 3 | Terminal Connection | Screw Terminal |
| Grounding | Grounding | Dimensions | 2.75 in dia X 4.68 in L |
| Mounting Type | Cable | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Watertight | For Use With | SO, ST, STO, SOO Cord |
| Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No.42, UL 498 | Application | Industrial |
| UPC | 078477525555 |
Packages
| 1 - Unit | 10 - Crate | 640 - Pallet |
