lev2611

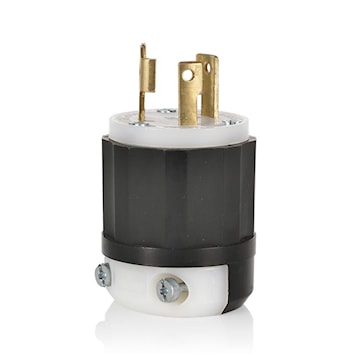

LEVITON 2611 Black & White Locking Plug 30 A, 125 V, Locking Plug
lev2611
LEVITON 2611 Black & White Locking Plug 30 A, 125 V, Locking Plug
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:2611
Description
Locking plug offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. It is constructed of nylon with solid brass blades or contacts and steel, zinc plated assembly screws.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Locking Plug | Type | Locking Plug |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 125 V | Amperage Rating | 30 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | WD-1, WD-6 |
| Color/Finish | Black/White | Cord Type | S, SO, ST, STO, STW, STW-A, STOW-A, SOO, STOO |
| Phase | 1 | Terminal Connection | Screw Terminal |
| Contact Material | Solid Brass | NEMA Rating | L5-30P |
| Material | Impact Modified Nylon | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 28 in dia x 2.47 in L |
| Environmental Conditions | -40 to 60 °C | Standards | ANSI (C-73), NOM Certified (057), CSA Certified (File LR-406), UL Fed Spec WC-596 (File E13393), UL498 (File E13393) |
| Application | For Industrial | UPC | 078477807989 |
Packages
| 1 - Unit | 10 - Crate | 2700 - Pallet |
