lev2721

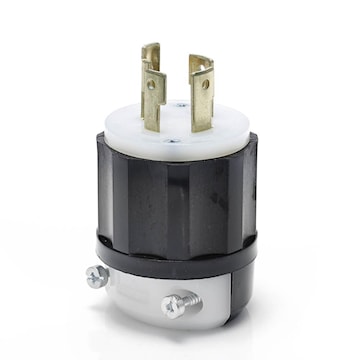

LEVITON 2721 Black & White Locking Plug 30 A, 250 V, Industrial Grade
lev2721
LEVITON 2721 Black & White Locking Plug 30 A, 250 V, Industrial Grade
Inventory
Unavailable for order
Manufacturer:LEVITON
Manufacturer #:2721
Description
Locking plug offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty. It is constructed of nylon with solid brass blades or contacts and steel, zinc plated assembly screws.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Locking Plug | Type | Industrial Grade |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 250 V | Amperage Rating | 30 A |
| Conductor Size | 18 - 10 AWG | NEMA Configuration | L15-30P |
| Color/Finish | Black/White | Cord Type | S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A |
| Phase | 3 | Terminal Connection | Screw Terminal |
| Temperature Rating | -40 °C to 60 °C | Maximum Load Capacity | 3 hp |
| Contact Material | Solid Brass | NEMA Rating | L15-30P |
| Material | Impact Modified Nylon | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 2.22 in dia x 2.70 in L |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA Certified (File LR-406), UL Fed Spec WC-596 (File E13393), UL 498 (File E13393) |
| Application | Industrial | UPC | 078477808375 |
Packages
| 1 - Unit | 10 - Crate | 2700 - Pallet |
