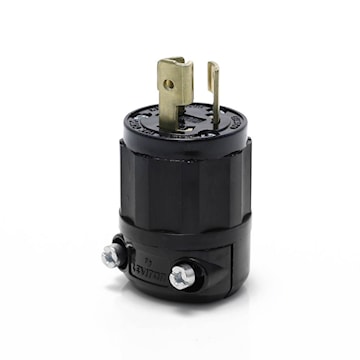

LEVITON 4770-B Black & White Twist-Lock Plug 15 A, 277 VAC, Locking Plug
lev4770b
LEVITON 4770-B Black & White Twist-Lock Plug 15 A, 277 VAC, Locking Plug
Price
$49.10
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:4770-B
Description
Locking plug, industrial grade, grounding, NEMA L7-15P, nylon body material.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Twist-Lock Plug | Type | Locking Plug |
| Number of Wires | 3 | Number of Poles | 2 |
| Voltage Rating | 277 VAC | Amperage Rating | 15 A |
| Conductor Size | 18-10 AWG | NEMA Configuration | L7-15P |
| Color/Finish | Black | Cord Type | S, SO, SVT |
| Phase | 1 | Terminal Connection | Screw |
| Temperature Rating | -40 °C to 60 °C | Maximum Load Capacity | 2 hp |
| Contact Material | Solid Brass | NEMA Rating | L7-15P |
| Material | Impact Modified Nylon | Grounding | Grounding |
| Mounting Type | Cable | Dimensions | 1.53 in dia x 1.98 in L |
| Environmental Conditions | Operating Temperature Range (-40 to 60) °C | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA Certified (File LR-406), UL Fed Spec WC-596 (File E13393), UL 498 (File E13393) |
| Application | For Industrial use | UPC | 078477143032 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 5250 - Pallet |
