LEVMGFN1HG

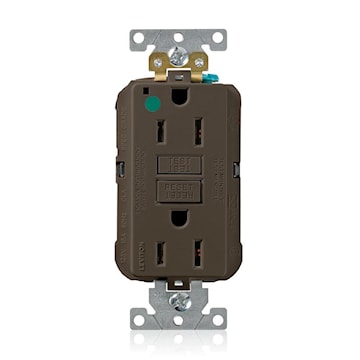

LEVITON MGFN1-HG Receptacle GFCI hospital grade 15A 125V brown
Description
Extra-heavy duty hospital grade Lev-Lok® self-test GFCI non-tamper resistant receptacle, NEMA 5-15R. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes. Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok®, Smart-Lock Pro |
| Item Name | GFCI Duplex Receptacle Outlet | Type | Extra Heavy-Duty |
| Grade | Hospital | Voltage Rating | 125 V |
| Amperage Rating | 15 A | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Rating | 5-15R |
| Material | Polycarbonate/PBT | Color | Brown |
| Grounding | Self-Grounding | Temperature Rating | -35 °C to 66 °C |
| Standards | UL 943, UL 498, CSA C22.2 No. 42 and 144, Federal Specifications W-C-596 | Application | Extra Heavy Duty, Hospitals |
| UPC | 078477724354 |
Packages
| 1 - Unit | 10 - Crate | 2320 - Pallet |
