Description

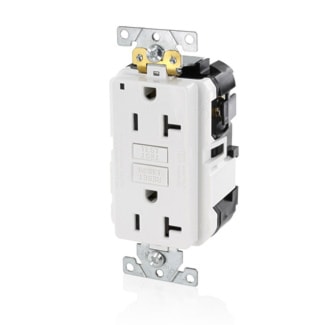

Extra-heavy duty industrial grade Lev-Lok® self-test GFCI non-tamper resistant receptacle, NEMA 5-20R. Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed). Improved immunity to high frequency noise reduces nuisance tripping. Advanced electronics provides superior resistance to electrical surges and over-voltages. Low-profile design is easy to install in all electrical boxes. Patented SmartlockPro® protection prevents resetting when ground fault protection has been lost.
Specifications
| Brand Name | Leviton | Sub Brand | Lev-Lok®, Smart-Lock Pro |
| Item Name | Straight Blade Duplex GFCI Receptacle | Type | Self-Test, Slim, Extra Heavy Duty |
| Grade | Industrial | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | 5-20R |
| NEMA Rating | 5-20R | Material | Polycarbonate/PBT |
| Color | White | Grounding | Self-Grounding |
| Temperature Rating | -35 °C to 66 °C | Standards | UL 943, UL 498, CSA C22.2 No. 42 & 144, Fed Spec W-C-596 |
| Application | Extra Heavy Duty Industrial Grade | UPC | 078477724828 |
Packages
| 1 - Unit | 10 - Crate | 2320 - Pallet |
