HUBHBLFRSBL

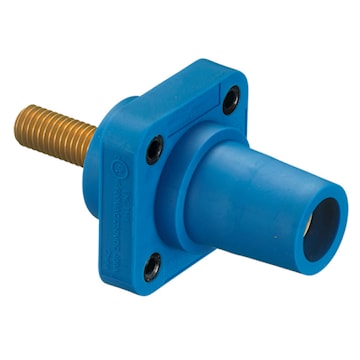

HUBBELL HBLFRSBL Receptacle 1-pole female stud 400A 600VAC/250VDC blue
Description
Panel mount female stud receptacle with through hole mounting. Thermoplastic elastomer (TPE) base compound. Brass contact and nylon retaining screw. 4 to 4/0 AWG terminal accommodation.
Specifications
| Brand Name | Hubbell | Sub Brand | Single Pin |
| Type | Panel Mount Receptacle | Size | Standard Sized |
| Voltage Rating | 600 AC, 250 DC Max V | Amperage Rating | 400 A |
| Wattage | 240000 W | Number of Poles | 1,1 |
| Number of Wires | 1,1 | NEMA Rating | Non-Nema |
| Material | Elastomer,Elastomeric | Color | Blue |
| Phase | 1 | Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Standards | UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications | Application | High Ampacity Connections |
| UPC | 783585112664 |
Packages
| 1 - Unit | 10 - Box | 25 - Box |
