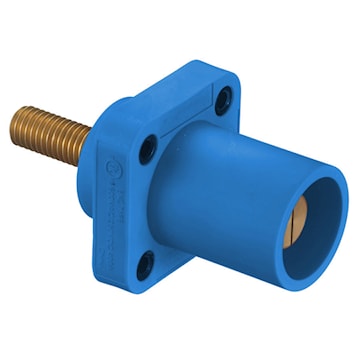

HUBBELL HBLMRSBL Single Pin Male Single Pole Male Receptacle Flanged Single 400 A, 600 AC/250 DC V, Blue
hubhblmrsbl
HUBBELL HBLMRSBL Single Pin Male Single Pole Male Receptacle Flanged Single 400 A, 600 AC/250 DC V, Blue
Price
$75.85
/ EA
Inventory
Available for backorder
Manufacturer:HUBBELL
Manufacturer #:HBLMRSBL
Description
Panel mount male stud receptacle with through hole mounting. Thermoplastic elastomer (TPE) base compound. Brass contact and nylon retaining screw. 4 to 4/0 AWG terminal accommodation.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Single Pin Male |
| Item Name | Single Pole Male Receptacle | Type | Flanged |
| Voltage Rating | 250 VDC/600 VAC | Amperage Rating | 400 A |
| Conductor Size | 4-4/0 AWG | Wattage | 240000 W |
| Phase | 1 | Material | Thermoplastic |
| Color | Blue | Length | 4.600 in |
| Mounting | Screw Mount | NEMA Rating | Non-NEMA |
| Standards | UL 498 for Attachment Plugs and Receptacles, UL 1691 Draft Standard for Single Pin and Sleeve Devices Intended for Theatre, Stage and Studio Applications | Application | High Ampacity Connections |
| UPC | 783585113005 |
Packages
| 1 - Unit | 10 - Box | 25 - Box |
