hubig5362i

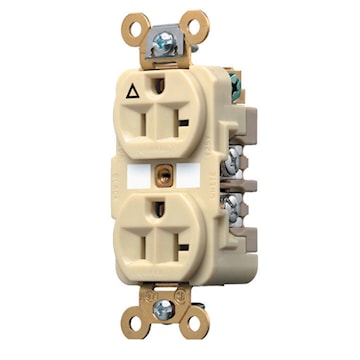

HUBBELL IG5362I Straight Blade Devices Traditional, Extra Heavy Duty Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
hubig5362i
HUBBELL IG5362I Straight Blade Devices Traditional, Extra Heavy Duty Straight Blade Duplex Receptacle 20 A, 5-20R Ivory
Price
$104.15
/ EA
Inventory
Available for backorder
Manufacturer:HUBBELL
Manufacturer #:IG5362I
Description
Specification grade extra heavy duty duplex receptacle. Isolated ground. 2-pole, 3-wire grounding. Low resistance of fault currents. Back wired ground terminal. Greater contact force and reduced heat build-up. Quick, sure circuit identification. Designed for quick inspection. Increased impact resistance.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade |
| Item Name | Straight Blade Duplex Receptacle | Type | Traditional, Extra Heavy Duty |
| Size | Standard Sized | Voltage Rating | 125 V |
| Amperage Rating | 20 A | Wattage | 2500 W |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-20R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-20R | Conductor Size | 14-12 AWG |
| Material | Thermoplastic | Color | Ivory |
| Phase | 1 | Terminal Connection | Screw |
| Dielectric Strength | Withstands 2,000V minimum | Grounding | Isolated |
| Mounting Type | Screw | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | NEMA WD-1 and WD-5, UL 498 | Application | Extra Heavy Duty |
| UPC | 783585876887 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate |
