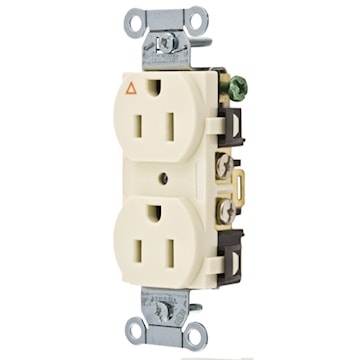

HUBBELL IG15CRLA Receptacle flush isolated ground 125V 15A lt alm
hubig15crla
HUBBELL IG15CRLA Receptacle flush isolated ground 125V 15A lt alm
Price
$17.30
/ EA
Inventory
Available for backorder
Manufacturer:HUBBELL
Manufacturer #:IG15CRLA
Description
Hubbell-Pro™ specification grade commercial receptacle made of smooth nylon face with isolated ground, 125 V, side wire only.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade |
| Item Name | Straight Blade Duplex Receptacle | Type | Standard |
| Grade | Commercial, Specification | Size | Standard Sized |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Wattage | 1875 W | Number of Poles | 2 |
| Number of Wires | 3 | NEMA Configuration | 5-15R |
| Connection Type | Back and Side Wired | NEMA Rating | 5-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Light Almond | Phase | 1 |
| Terminal Connection | Screw | Dielectric Strength | 2000 V |
| Contact Material | Brass | Dimensions | 1.32 x 0.83 x 3.28 in |
| Mounting Type | Flush/Recessed | Environmental Conditions | Indoor Dry Unless Protected by Additional Means, UL 94V-2 Flammability Rating |
| Standards | CSA Certified, CSA C22.2 No. 42, Federal Specification WC-596, NEMA® WD-6 Compliant, UL 498, UL Listed in File Number E2186 | Application | For Commercial Applications |
| UPC | 783585147611 |
Packages
| 1 - Unit | 10 - Box | 100 - Crate |
