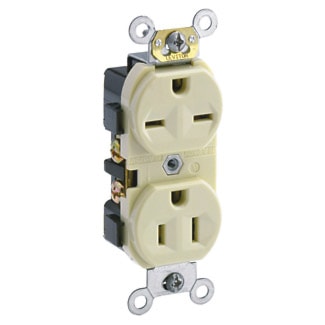

LEVITON 5031-I Receptacle straight duplex narrow body 2P 3W 125/250V 15AMP ivory
lev5031i
LEVITON 5031-I Receptacle straight duplex narrow body 2P 3W 125/250V 15AMP ivory
Price
$19.67
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5031-I
Description
Leviton line of heavy-duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant etc. These commercial grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Specifications
| Brand Name | Leviton | Sub Brand | Commercial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Duplex Outlet,Straight Blade |
| Grade | Commercial | Size | 46 H x 1.56 W x 19 D IN |
| Voltage Rating | 125/250 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| Connection Type | Back and Side Wired | NEMA Rating | 5-15R, 6-15R |
| Conductor Size | 14-10 AWG | Material | Nylon |
| Color | Ivory | Phase | 1 |
| Dielectric Strength | 2000 V Minimum | Grounding | Self-Grounding |
| Dimensions | 1.56 in W x 19 in D x 46 in H | Mounting Type | Wall Box |
| Temperature Rating | -40 °C to 60 °C | Environmental Conditions | Flammability (Rated V-2 Per UL94) |
| Standards | NEMA (WD-2, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) | Application | Commercial |
| UPC | 078477208007 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
