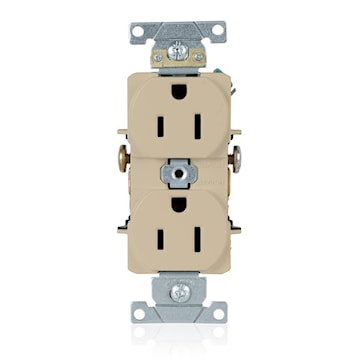

LEVITON 5242-I Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
lev5242i
LEVITON 5242-I Duplex Outlet,Straight Blade Straight Blade Duplex Receptacle 15 A, 5-15R Ivory
Price
$10.96
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5242-I
Description
Duplex receptacle, NEMA 5-15R. 2-pole, 3-wire. Industrial series heavy duty specification grade. Straight blade. Self grounding. Side wired. Steel strap. Leviton line of heavy duty industrial grade receptacles are available with a number of wiring options and features. These heavy duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
| Brand Name | Leviton | Sub Brand | INDUSTRIAL RECEPTACLES |
| Item Name | Straight Blade Duplex Receptacle | Type | Duplex Outlet,Straight Blade |
| Grade | Commercial | Size | 46 H x 1.55 W x 1.12 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14 - 10 AWG |
| Material | Polybutylene/Thermoplastic | Color | Ivory |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 1.55 in W x 1.12 in D x 46 in H |
| Mounting Type | Wall Box | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL 498 (File E13399) |
| Application | Commercial | UPC | 078477788134 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 3200 - Pallet |
