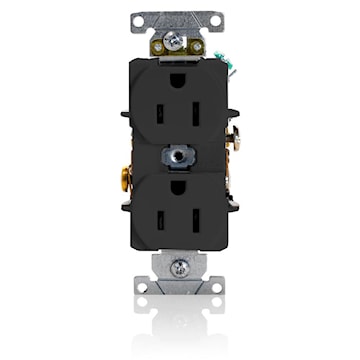

LEVITON 5262-SE Smooth Face Straight Blade Duplex Receptacle 15 A, 5-15R Black
lev5262se
LEVITON 5262-SE Smooth Face Straight Blade Duplex Receptacle 15 A, 5-15R Black
Price
$6.40
/ EA
Inventory
Available for backorder
Manufacturer:LEVITON
Manufacturer #:5262-SE
Description
Industrial-grade heavy-duty duplex receptacle. Nylon face and body. Galvanized steel with riveted ground contacts strap. Brass triple-wipe line contact. Galvanized steel clamp nuts. Brass ground clip. Brass 10-32 terminal and steel 8-32 grounding screw. Straight blade wiring. 1/2 HP AC horsepower rating. 2-pole. Self-grounding, 3-wire. NEMA-5-15R. Withstands 2000 V per UL498 dielectric voltage. Rated V-2 per UL94 flammability. Rated V-2 per UL94 flammability. -40 to 60°C operating temperature. Ratings are permanently marked on device. Terminal accommodates 14 to 10 AWG. Ratings are permanently marked on device. 14 to 16 inch-lbs torque range. Heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Specifications
| Brand Name | Leviton | Sub Brand | Industrial Receptacles |
| Item Name | Straight Blade Duplex Receptacle | Type | Smooth Face |
| Grade | Commercial | Size | 46 H x 1.33 W x 19 D IN |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Number of Poles | 2 | Number of Wires | 3 |
| NEMA Configuration | 5-15R | Connection Type | Back and Side Wired |
| NEMA Rating | 5-15R | Conductor Size | 14-10 AWG |
| Material | Thermoplastic | Color | Black |
| Phase | 1 | Dielectric Strength | 2000 V |
| Grounding | Self-Grounding | Dimensions | 46 in H x 1.33 in W x 19 in D |
| Mounting Type | Wallbox | Temperature Rating | -40 °C to 60 °C |
| Environmental Conditions | Flammability (Rated V-2 Per UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File 152105), UL Fed Spec WC-596 (File E13399), UL Listed 498 (File E13399) |
| Application | For Commercial | UPC | 078477205310 |
Packages
| 1 - Unit | 10 - Box | 50 - Crate | 6400 - Pallet |
